4 min read command injection

BuckeyeCTF Tesseract Walkthrough (OCR-as-a-Service)

This is write-up of the Tesseract (OCR-as-a-service) challenge from the Buckeye CTF this past weekend (Oct 23-24). Thank you to the organizers for this event, it was a fun challenge.

This is also a great challenge to read through for understanding basic command injection vulnerabilities.

Challenge Prompt

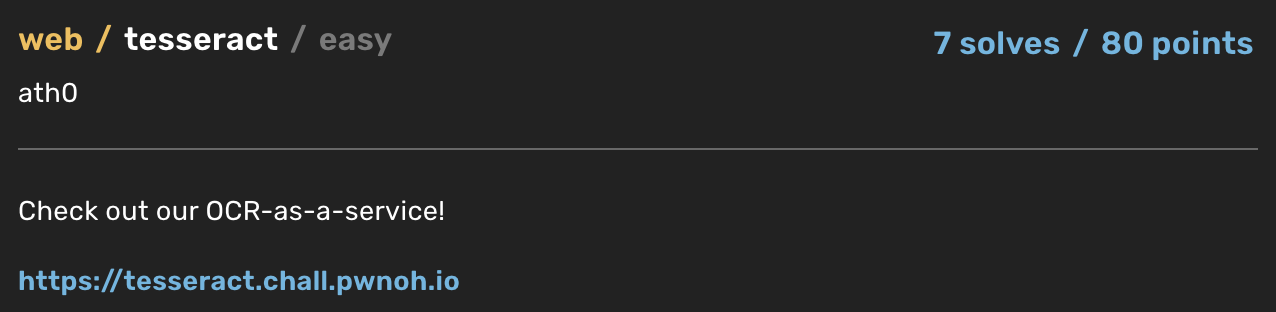

Here’s what the CTF prompt looks like (not a ton of detail):

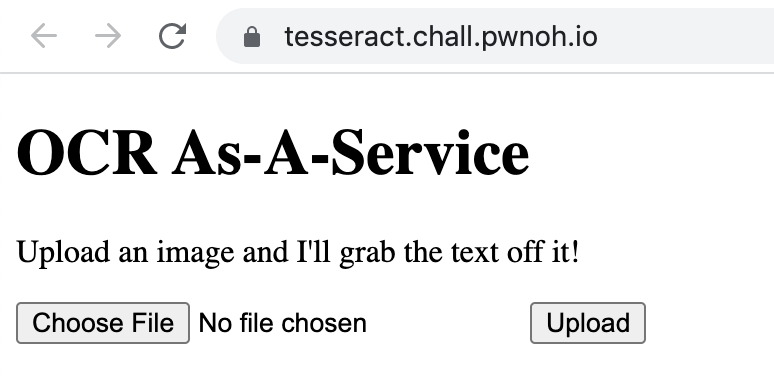

If we go to the webpage at https://tesseract.chall.pwnoh.io/, we see a simple file upload:

There’s nothing interesting in the source code, so I originally thought this was a file upload vulnerability (such as a PHP shell).

Then I realized, we were given source code, so I should check that out. 😅

Source Code

First of all, this program is a Flask (Python) app, and the entire app functionality is in app.py. After the imports and Flask boilerplate, we see that there are two endpoints, one at / and one at /uploads/* for retrieving files.

You can either GET or POST to the / endpoint.

@main.route("/", methods=["GET", "POST"])
def upload_file():
    messages = None
    if request.method == "POST":
        # check if the post request has the file part
        if "file" not in request.files:
            flash("No file part")
            return redirect(request.url)
        file = request.files["file"]

        # If the user does not select a file, the browser submits an
        # empty file without a filename.
        if file.filename == "":
            flash("No selected file")
            return redirect(request.url)
        if file:
            filename = file.filename
            file.save(os.path.join(current_app.config["UPLOAD_FOLDER"], filename))

        # Run OCR on the uploaded image
        process_path = os.path.join("/uploads", filename)
        process = subprocess.run(
            f"tesseract \'{process_path}\' \'{process_path}\' -l eng",
            shell=True,
            check=False,
            capture_output=True,
        )
        print(process.args)

        if process.returncode == 0:
            print("Success")
            return redirect(url_for("main.download_file", name=filename + ".txt"))
        else:
            messages = [process.stdout.decode(), process.stderr.decode()]

        return render_template_string("""HTML stuff goes here, cut for length""",
            messages=messages,
        )

The other endpoint is pretty straightforward, no obvious vulns here:

@main.route("/uploads/")
def download_file(name):
    return send_from_directory(current_app.config["UPLOAD_FOLDER"], name)

Finding the vulnerability

Let’s summarize that first endpoint, since it seems like that’s the location of the vulnerability:

  1. If it’s a POST request (i.e. if a file is being uploaded to this endpoint), check to see that a file is actually present.
  2. Next, get the filename.
  3. Save the file in the upload folder directory.
  4. Get a handle to the file’s location (“/uploads/your-file-name-here”)
  5. Run tesseract, which is an OCR service.
  6. If it worked, redirect the user to the downloaded file.
  7. If it didn’t work, display error messages from standard out.

One of the cardinal rules is to not trust user input. Another rule is not to give the user debugging output in the form of error messages and the like.

And both rules are being broken here.

Problem #1: Trusting user input

Let’s look closer at the tesseract command:

process = subprocess.run(
    f"tesseract \'{process_path}\' \'{process_path}\' -l eng",
    shell=True,
    check=False,
    capture_output=True,
)

This line runs tesseract on the command line. I searched for python examples to see which argument was the source file and which one was the destination, thinking I could use command injection to write the value of flag.txt into my image output.

Turns out I was making it more complicated than it needed to be.

Since it’s a command line argument, we can probably cut off the tesseract command partway through, and inject our own command.

Python will take our filename and put it in between the single quotes, so something like:

tesseract 'ourfilename' 'ourfilename' -l eng

If we inject something like ;ls, we’ll get:

tesseract ';ls' ';ls' -l eng

If we take a JPG or PNG file and rename it ;ls, the OCR works and we get forwarded to the /uploads/%3Bls.txt endpoint which isn’t what we want.

Much like SQL injection, we need to escape the single quote first. Let’s try ';ls, giving us a filename of ';ls.png

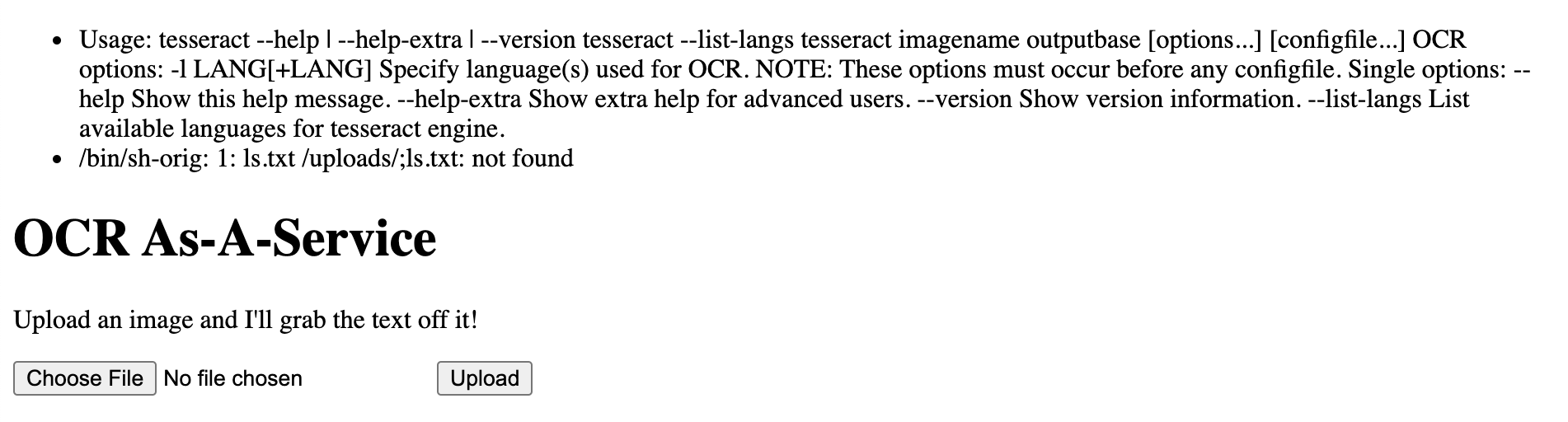

Now we’re on to something!

We now have two error message outputs: the tesseract call was incomplete (which we already know), and our second command, the ls, was unsuccessful.

It seems that it’s trying to find ls.txt, rather than using ls as a command by itself. Let’s add another ; after our injected command: ';ls;, making the filename ';ls;.png

Problem #2: Showing the user debugging output

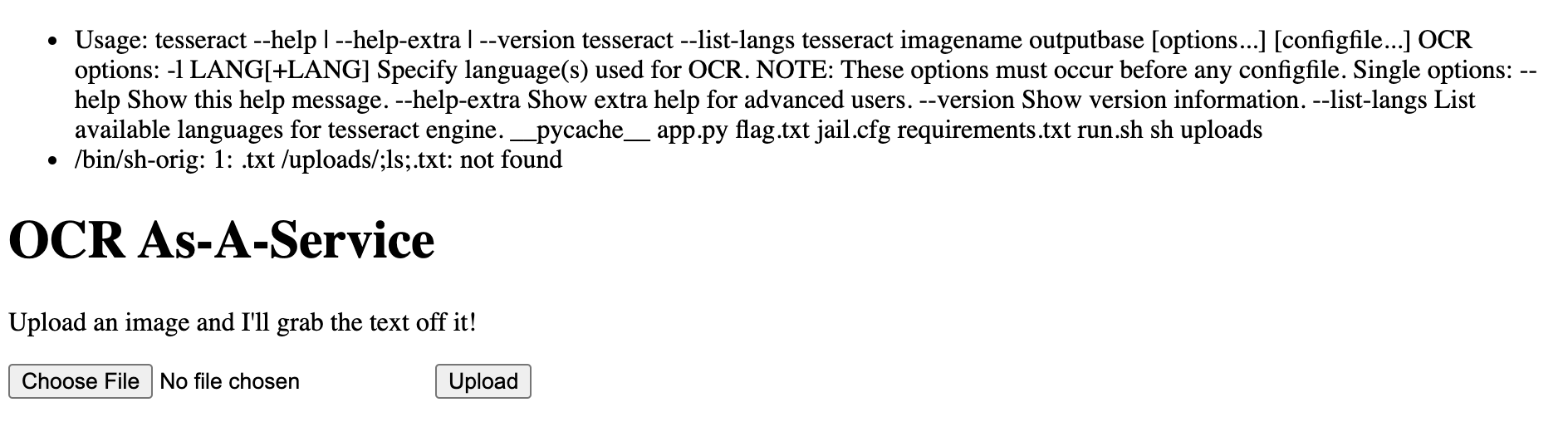

This output didn’t look any different to me at first. And then I saw the output of the command… it isn’t in the second bullet point, it’s concatenated to the end of the first point:

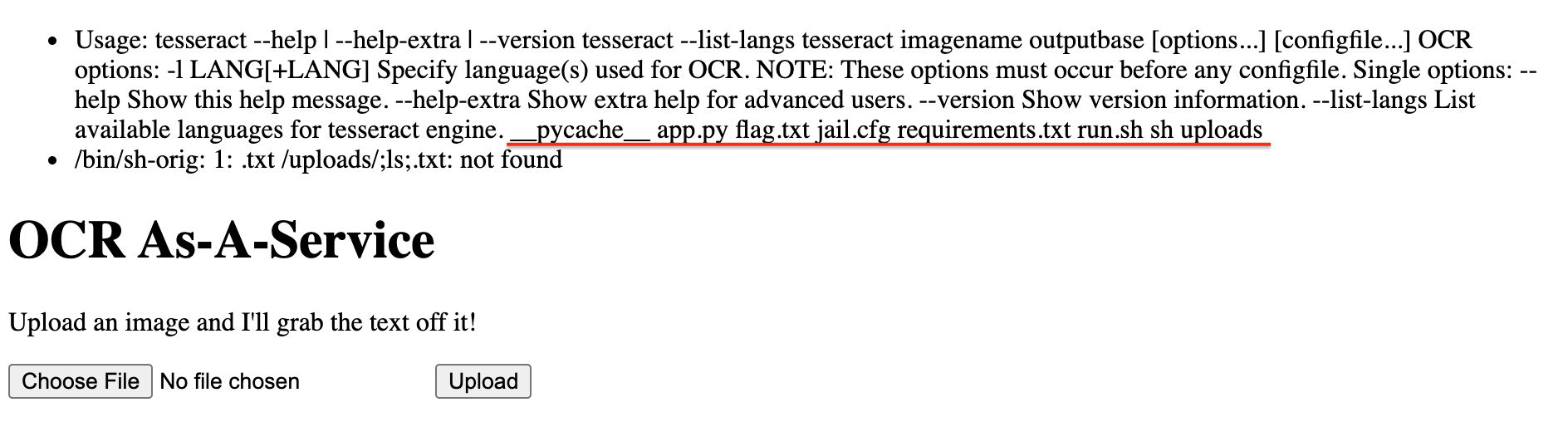

It looks like our flag is in the same directory, so it should be easy to retrieve it:

__pycache__   app.py   flag.txt   jail.cfg   requirements.txt   run.sh   sh   uploads

Solution

Now that we have a way of doing command injection, we can view the debugging output, and we know where the flag is, all we need to do is rename our image to ';cat flag.txt;, giving a full filename of ';cat flag.txt;.png

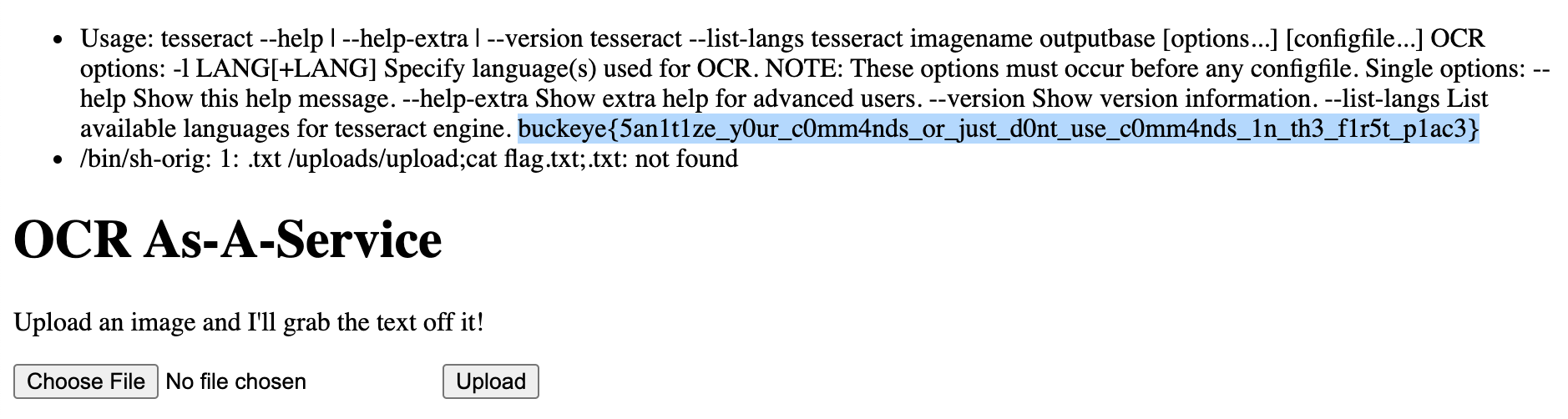

Let’s upload it and get the flag:

Thanks to the organizers!

References
