OverTheWire Natas Level 20 Walkthrough

The next level in Natas continues along with the PHPSESSID theme. This time, the app is storing session data outside of our each, but is implementing its own way of processing session data.

This walkthrough includes source code analysis and using Burp Suite to get the flag.

Level 20 ➔ 21

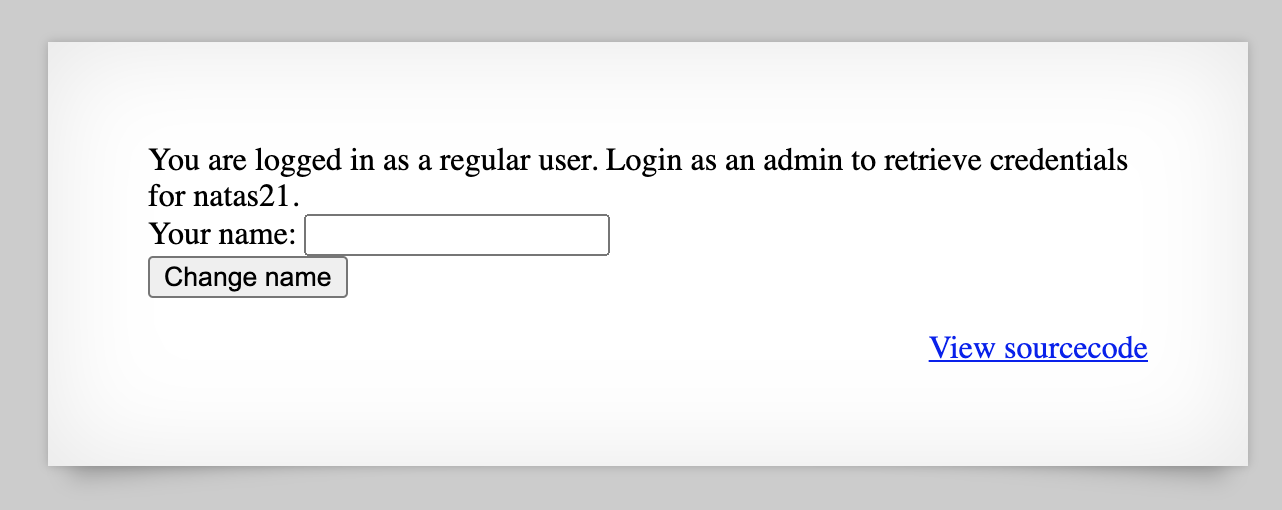

Visiting http://natas20.natas.labs.overthewire.org/ with credentials natas20 and eofm3Wsshxc5bwtVnEuGIlr7ivb9KABF gets us this view:

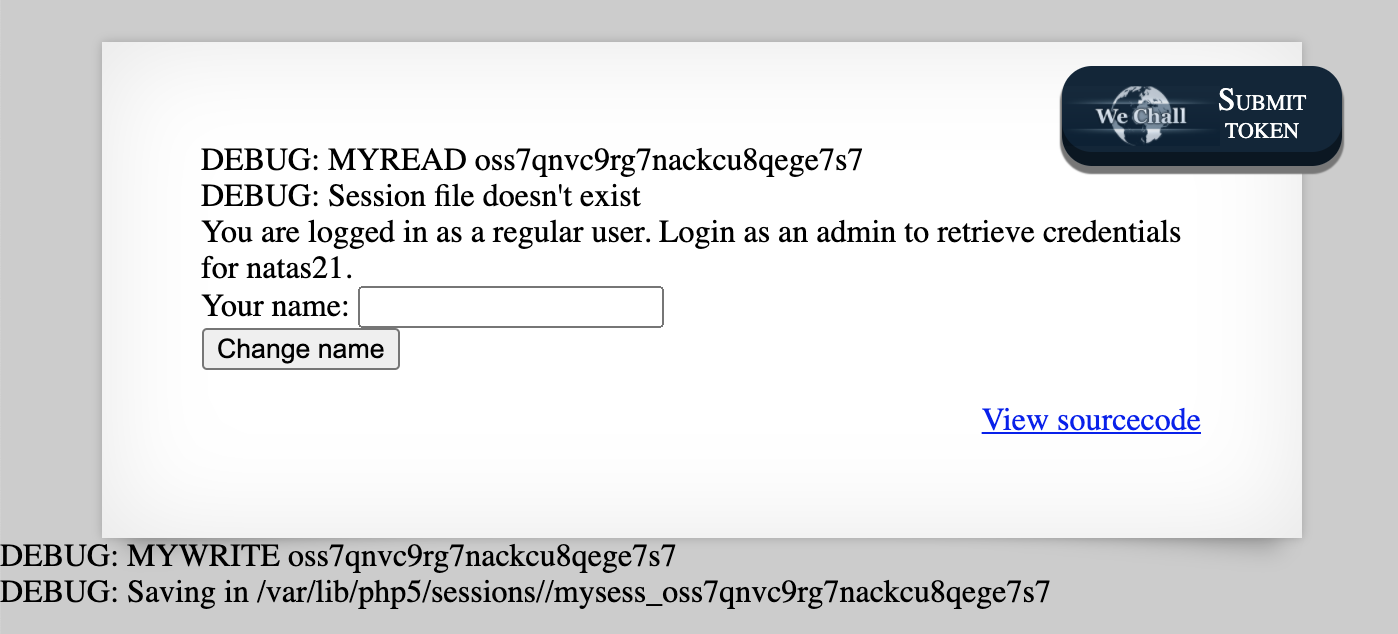

If we check the PHPSESSID cookie in Dev Tools, it ends up being a random string of characters. We’re given the source code, and as before, we can append ?debug to the URL (e.g. http://natas20.natas.labs.overthewire.org/index.php?debug) and see debug output:

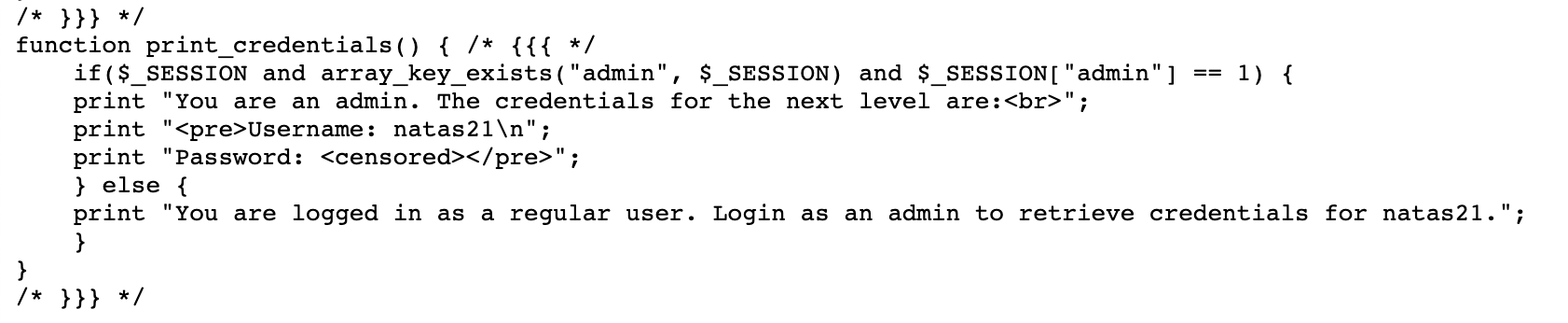

Our goal is to “login as an admin” in order to get natas21 credentials. In the source code, that happens here:

In order to view the credentials, we need the $_SESSION variable to exist, for it to contain a key called admin and for the value of that key to be 1.

Source code analysis

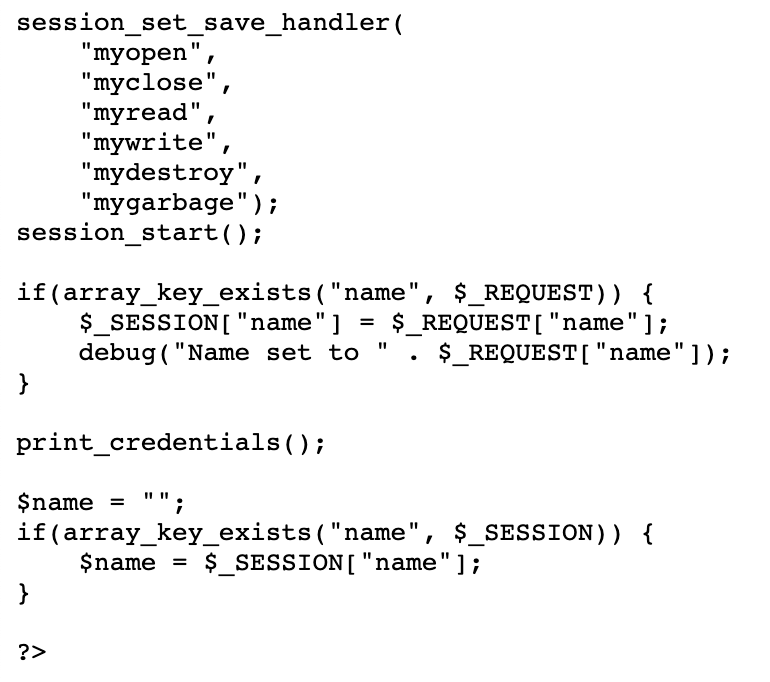

From the debug view shown above, how did we get a session value? Looking at the end of the provided source code, we see these lines of code:

First, session_set_save_handler() is called. This is a session-related function that sets user-level session storage functions. In other words, it lets the author of the code specify exactly what they want to happen when a session is read from, written to, opened, closed, and destroyed.

Then, session_start() is called, which starts or resumes an existing session. Then we call the print_credentials() function that would have shown us the flag if we had the admin values set. Then it checks for “name” in the session value and, if present, sets that for the form.

Of the functions specified in the session_set_save_handler() call, all but two are empty functions. That means we can effectively ignore myopen(), myclose(), mydestroy(), and mygarbage(). The remaining two are myread() and mywrite().

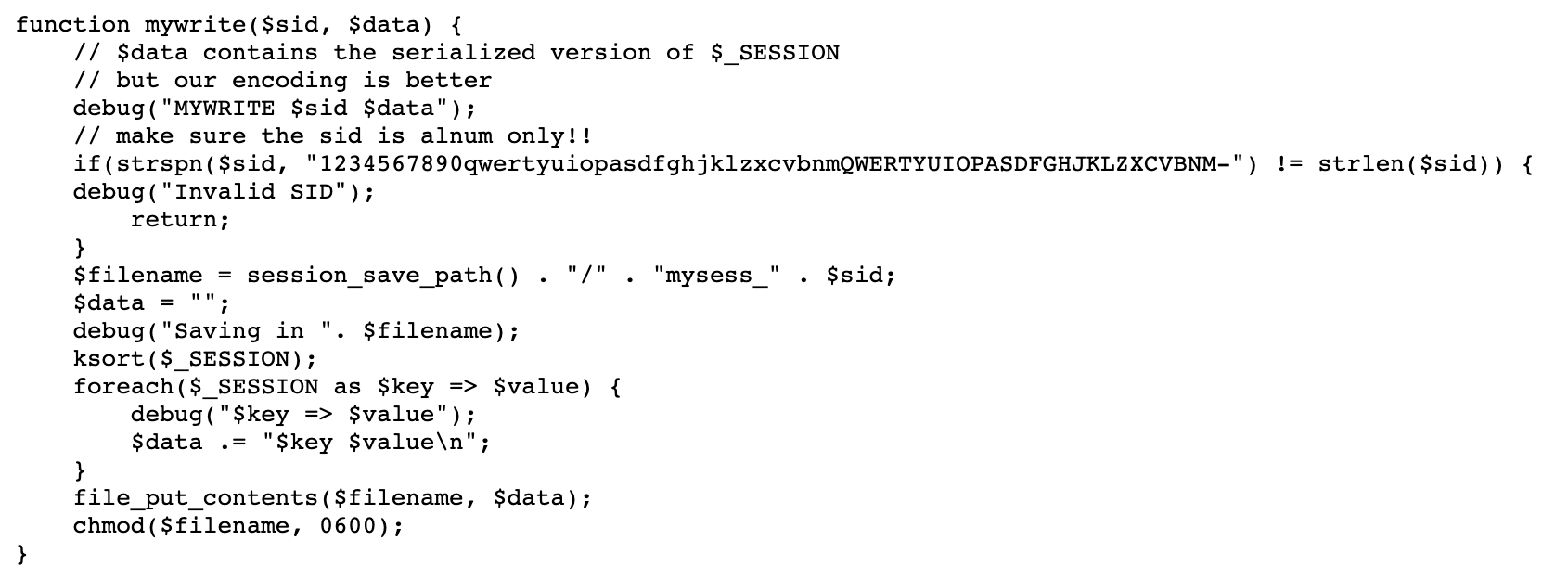

Session writing: mywrite()

If we’re to submit a name in the input provided to us, mywrite() is called. If we have ?debug appended to our requested URL, we’ll get debug output printing the $sid (randomly assigned session ID) and $data.

But we also see there are comments saying that the program uses something that’s “better” than the encoded $data value.

The $sid is checked to make sure it only includes alphanumeric characters using strspn(). This prevents us from doing some kind of path traversal attack using this line:

 $filename = session_save_path() . "/" . "mysess_" . $sid;

Then, things get a bit weird. The $data variable (which contains the serialized version of $_SESSION) is cleared, and the $_SESSION variable is ksort()‘d, which sorts the keys in ascending order.

Any time that developers go out of their way to avoid using the normal behavior of a function or library is an opportunity to find a bug. Not to say that open source developers are infallible, but the intended usage is usually there for good reason.

Finally, each key and value pair in $_SESSION are read into the (recently cleared) $data variable, and saved in the file.

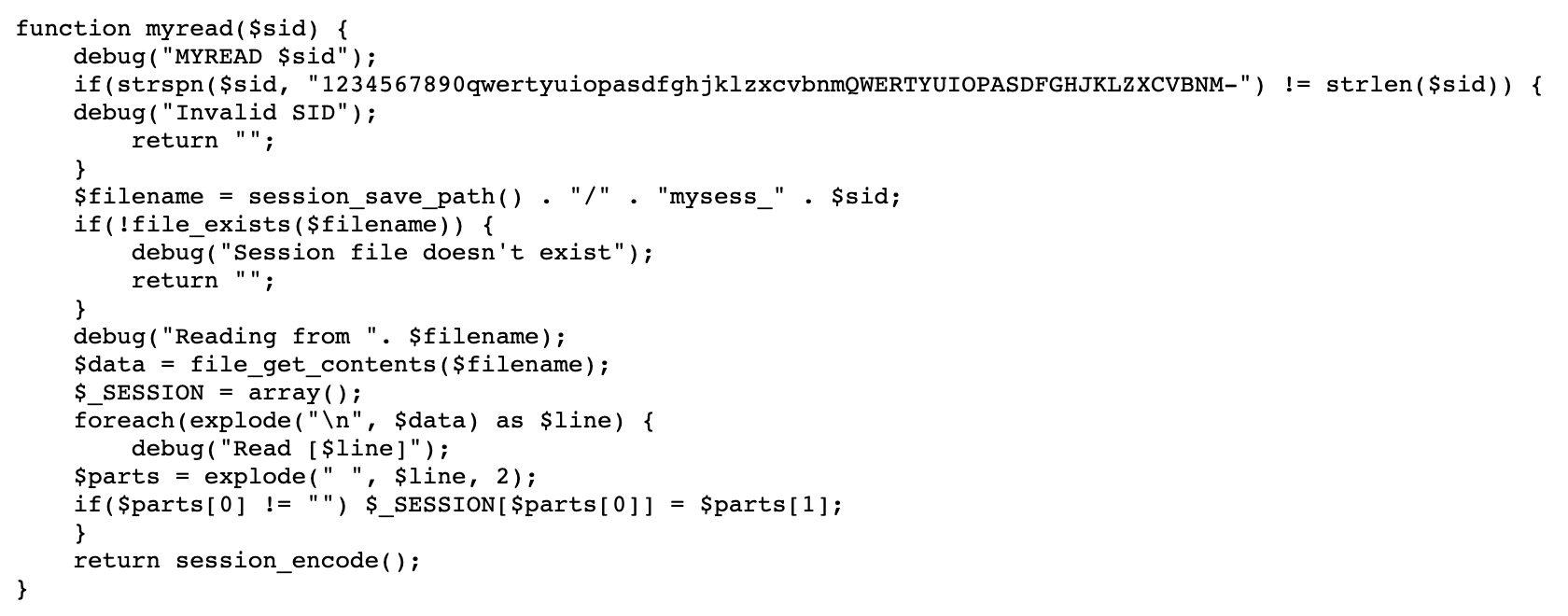

Session reading: myread()

Next up is the myread() function, which takes a $sid value (the random PHPSESSID) and makes sure it is not doing any path traversal weirdness.

Then it looks for the existence of the file that was saved previously in the mywrite() call. It gets the contents from that file, reads it line by line, and then writes that into the $_SESSION variable.

The last few lines are a bit confusing but if each line from the file is separated out (using the newline character) and read into a $line variable, then an example where set set name to equal test would look like:

• File contents “name test” are read out of file
• $parts reads “name test” using explode(), which separates “name test” using a space character, and turns it into an array of $parts = ["name", "test"];
• If the $parts[0] (which should be “name” in this example) is not empty, $_SESSION[$parts[0]] = $parts[1];  In our example, this means $_SESSION["name"] = "test";

Pinpointing the vulnerability

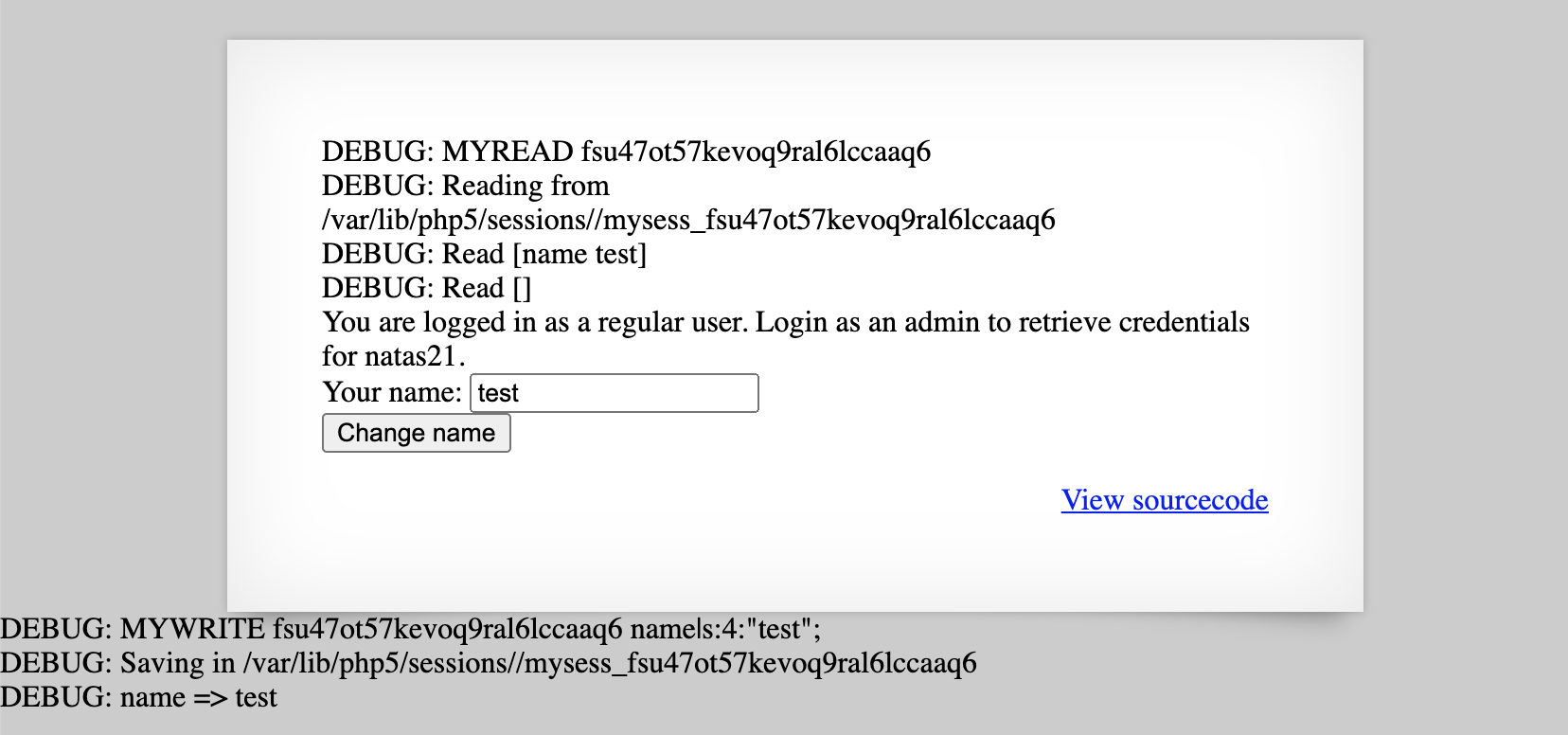

I got hung up on this level for quite a while, making the vulnerability more complicated than it needed to be. If you use the debug variable, you see output like:

The name|s:4:"test" part looks like a classic PHP object encoding vulnerability. But, I missed earlier that while that info gets printed up in the debug statement as $data, the value of $data gets overwritten for this homebrew $_SESSION storage scheme.

Another thing I missed was that myread() has a foreach loop to read lines out of the file. Why would there be multiple lines in a file where there’s only one key (“name”) that we can set?

Similar to that, why is there a ksort() to sort multiple keys if there’s only one key (again, “name”) that we can input?

The last clue that I originally missed was the newline character. The program does add a new line in for us in the mywrite() function, which partially explains why the myread() function reads lines in using the new line character as the end of the line. However, if there’s only one intended line, it seems unnecessary.

Injecting newlines

In addition to being unnecessary, it’s also exploitable, since no filtering is happening on our name input. If we’re able to input whatever we want for our name, which then gets formatted into:

name <our input>

Let’s try adding a \n and then more input such that the mywrite() function breaks it up by newline and writes it to the file as:

name test
secondkey whatever_we_want_here

Of course, since our goal is $_SESSION["admin"] = 1, our string will look like:

test\nadmin 1

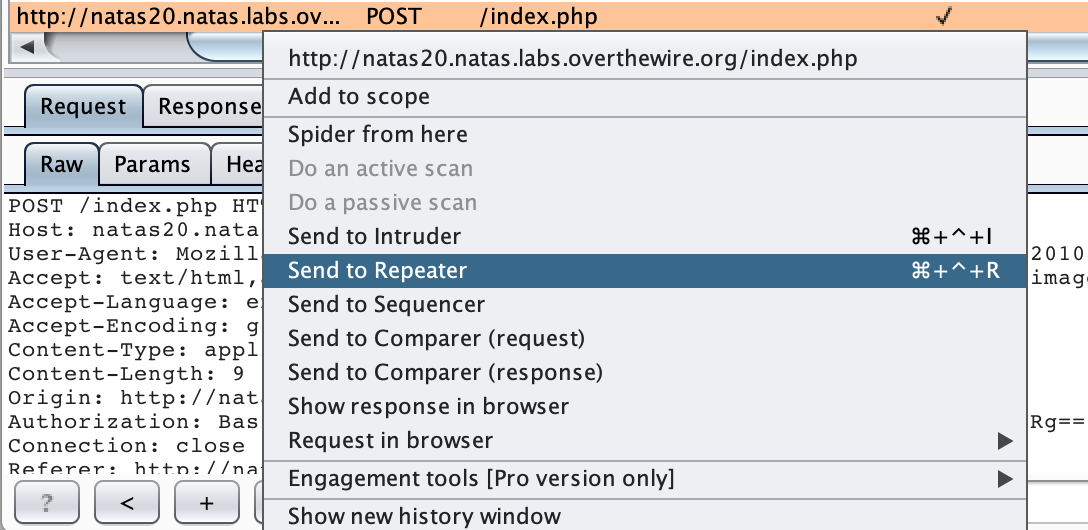

We can’t inject this value using the browser form directly, so let’s open up Burp Suite and use it to capture us submitting “test” to the form input. Then, right-click the request and select Send to Repeater.

Natas Level 20 Solution

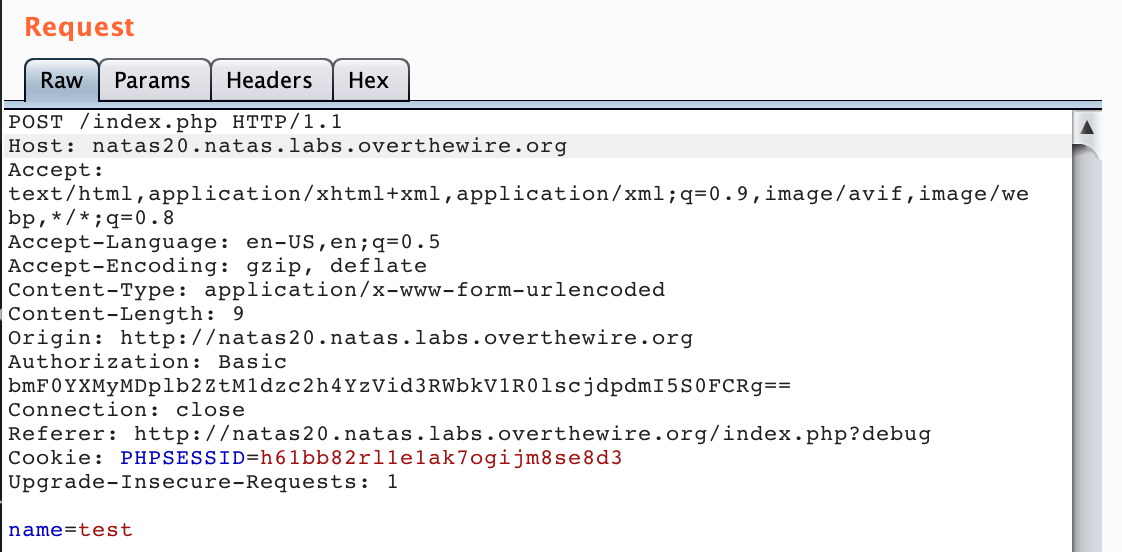

Now that we’ve got the POST request sent to the repeater, we can make our modifications to get the flag. Here’s our original request:

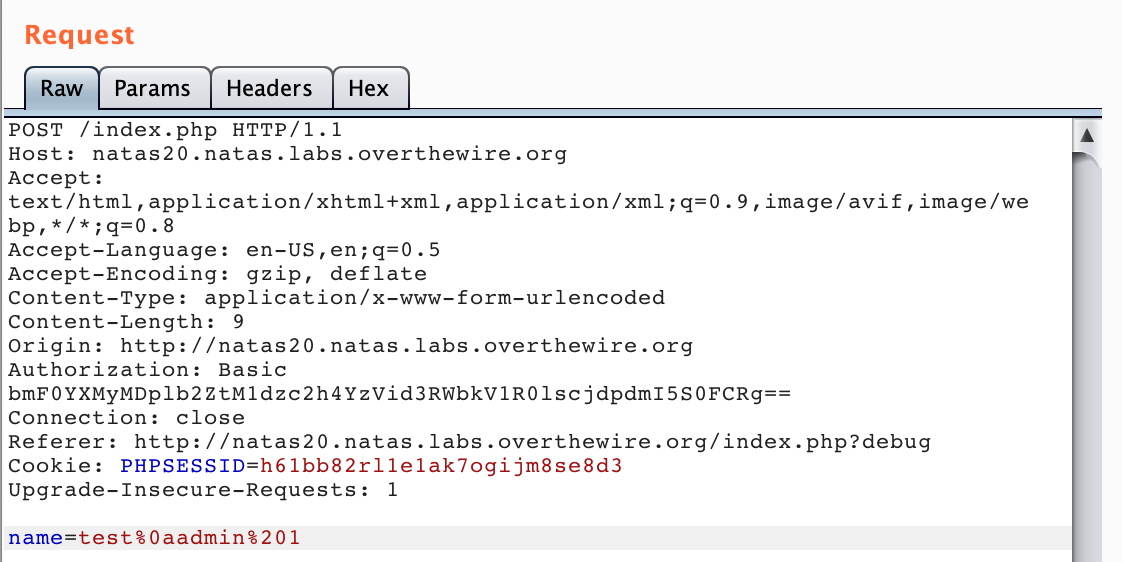

We need to change test to be test\nadmin 1 but we need to URL encode this. A newline character is URL-encoded as %0A and a space is URL-encoded as %20:

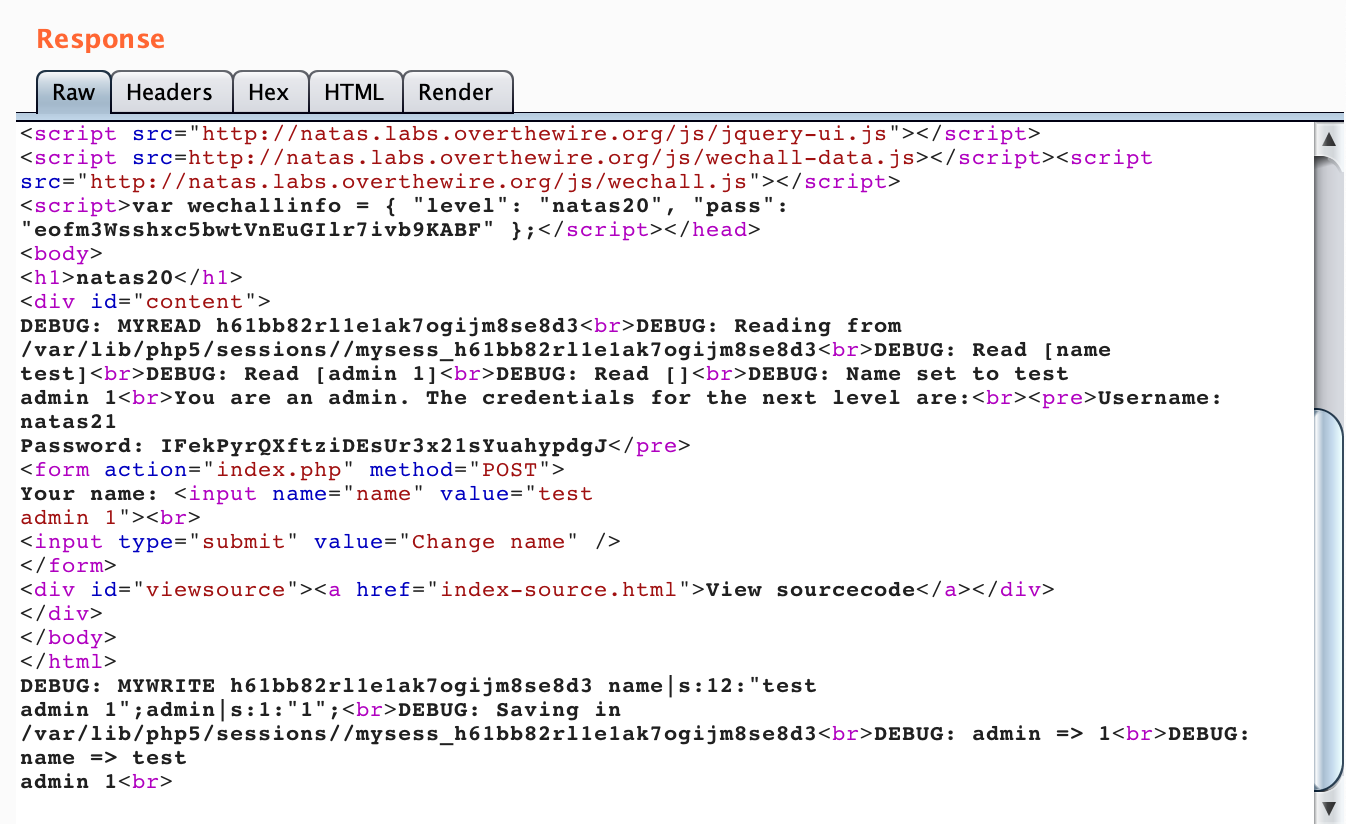

Add ?debug to the end of your request and hit Send. The result should include the flag:

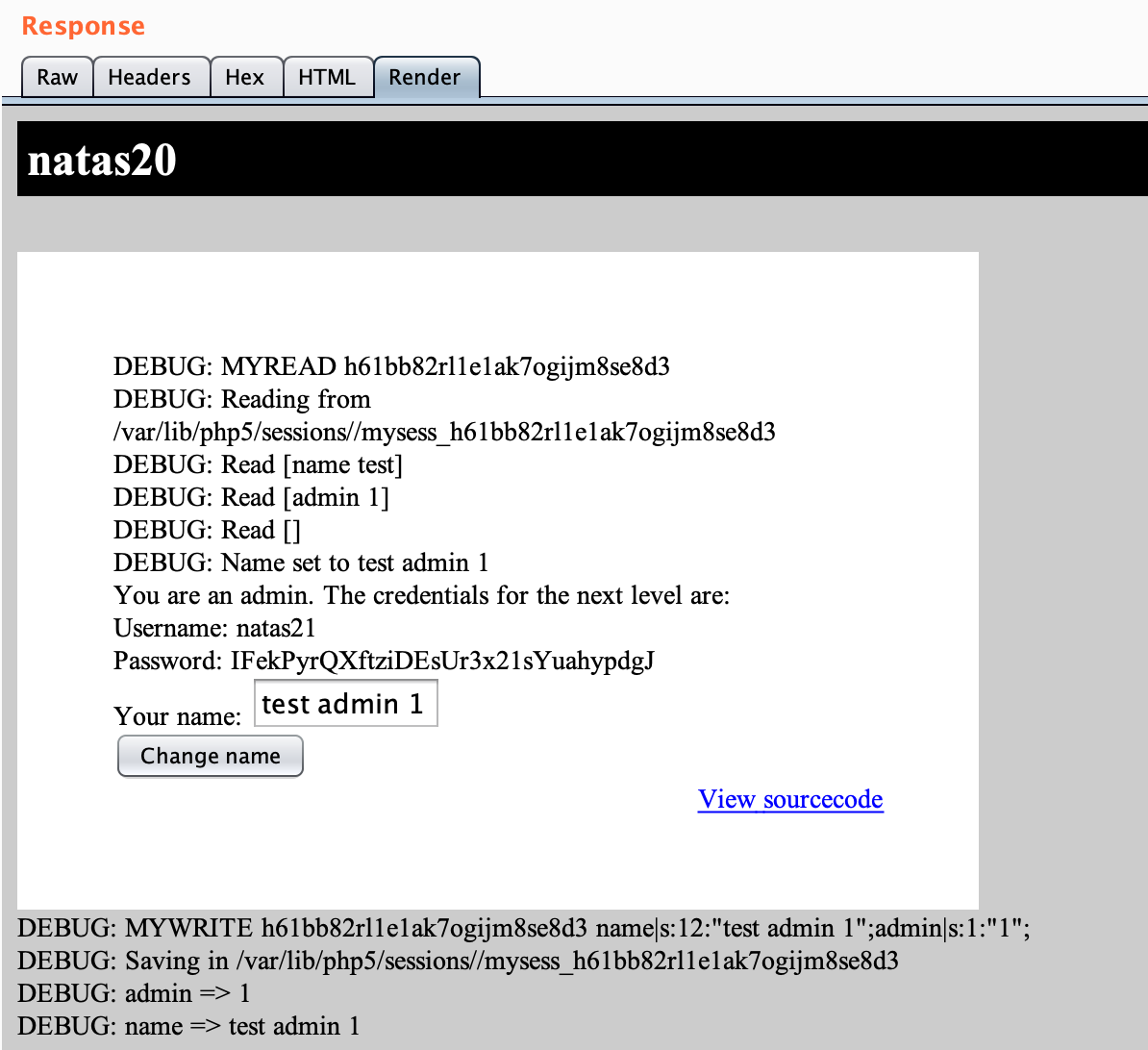

You can also click on the Render tab to see it more easily:

As you can see, it interpreted our input (with “name test” and “admin 1” on two separate lines) as valid data, (k)sorted them in alphabetic order, and then set the first one (“admin”) as a key/value pair in the $_SESSION variable, granting us admin access.

Takeaway: look for ways that developers have tried to modify or bypass intended functionality, as there may be logic errors or the opportunity for injected data. And if you’re a dev, don’t do this. 🙂
